Chase Paymentech Certified Orbital Solution for Oracle iPayment

Posted by divyang in Uncategorized

izSoft solution for Certified Payment Orbital solution integrating it with Oracle iPayment (11i) and Payments (R12) is a flexible, secure and complete solution. It enables semaless integration with just setup changes, without affecting any existing application. This is also certified by Chase paymentech certification analyst.

This solution can be utilized by Chase Paymentech merchants to process online authorizations, captures, void/reversals and refunds using HTTPS XML over the internet. Solution is basically for Chase Paymentech’s Orbital platform in Salem, NH.

It encompasses credit cards Visa, M/C, Discover, Amex, full Address Verification for U.S., Card Security Verification for Visa, M/C, Amex, Discover, and ECI indicator flag functionality of 7.

Oracle iPayment or Oracle Payments

Oracle iPayment (in Oracle Apps 11i) or Oracle Payments (in R12) is an electronic payment processing solution designed for application developers, systems integrators and enterprises that need to “payment-enable” new or existing Internet or client/server applications. iPayment provides payment instrument registration APIs for registering payment instruments such as credit cards, bank accounts, and purchase cards. It also provides payment transaction APIs that can perform credit card and purchase card operations such as authorization, capture, and bank account transferoperations. Risk evaluation APIs are provided to perform risk analysis.

Oracle iPayment supports multiple payment processing systems operating simultaneously and provides a powerful, business rulesdriven routing system that gives businesses and merchants full control over transaction processing.

Chase Paymentech Orbital

The Chase Paymentech Orbital Gateway system is a modular set of web-enabled tools permit merchants to securely accept and process card-not present payments over the Internet. The Orbital Gateway works with both of Chase Paymentech’s Host Processing Platforms – PNS and Salem. The PNS platform, which is sometimes referred to as the Tandem or Tampa, is primarily targeted to Retail and smaller customers. The Salem platform, sometimes referred to as the Stratus, is primarily targeted to Card-Not-Present processing and larger customers.

Chase Paymentech has adopted XML as its standard to process transactions over the Internet. Three types of XML APIs (Application Program Interface) may be used for XML processing on the Orbital Gateway.

The Orbital Gateway System authenticates merchants by IP addresses. During the certification process the merchant is required to register the IP address for the system that communicates with the Gateway. Additionally the IP address must be affiliated with the merchant ID number. Any activity presented from an IP address that is not registered and associated with the correct merchant ID results in an error.

Integration

Main part of the integration of Oacle E-Business Suite with Paymentech requires to perform following actions.

1. Accept parameters from iPayment in Oapf* format.

2. Create new request object based on transaction type (ora*),

3. Process the transaction,

4. Receive response

5. Set output variables in Oapf* format.

6. Display Oracle iPayment UI.

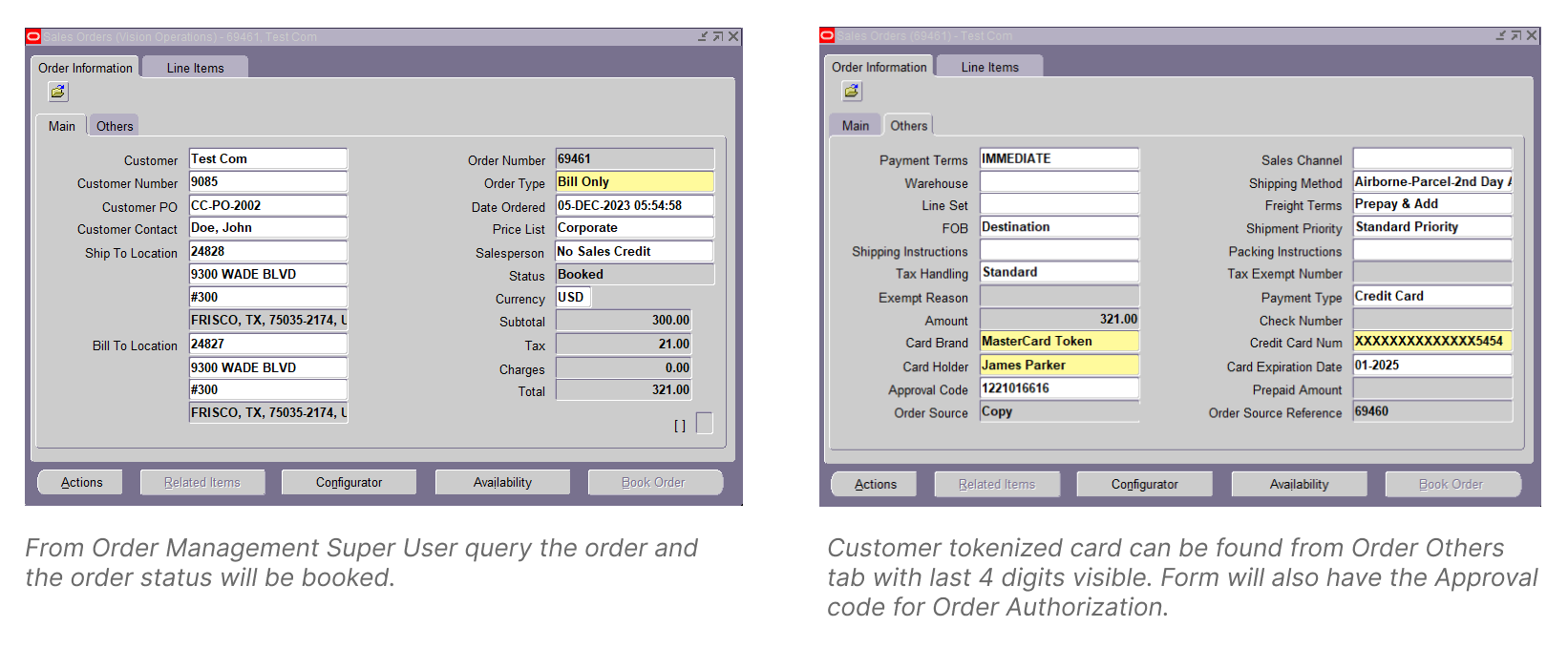

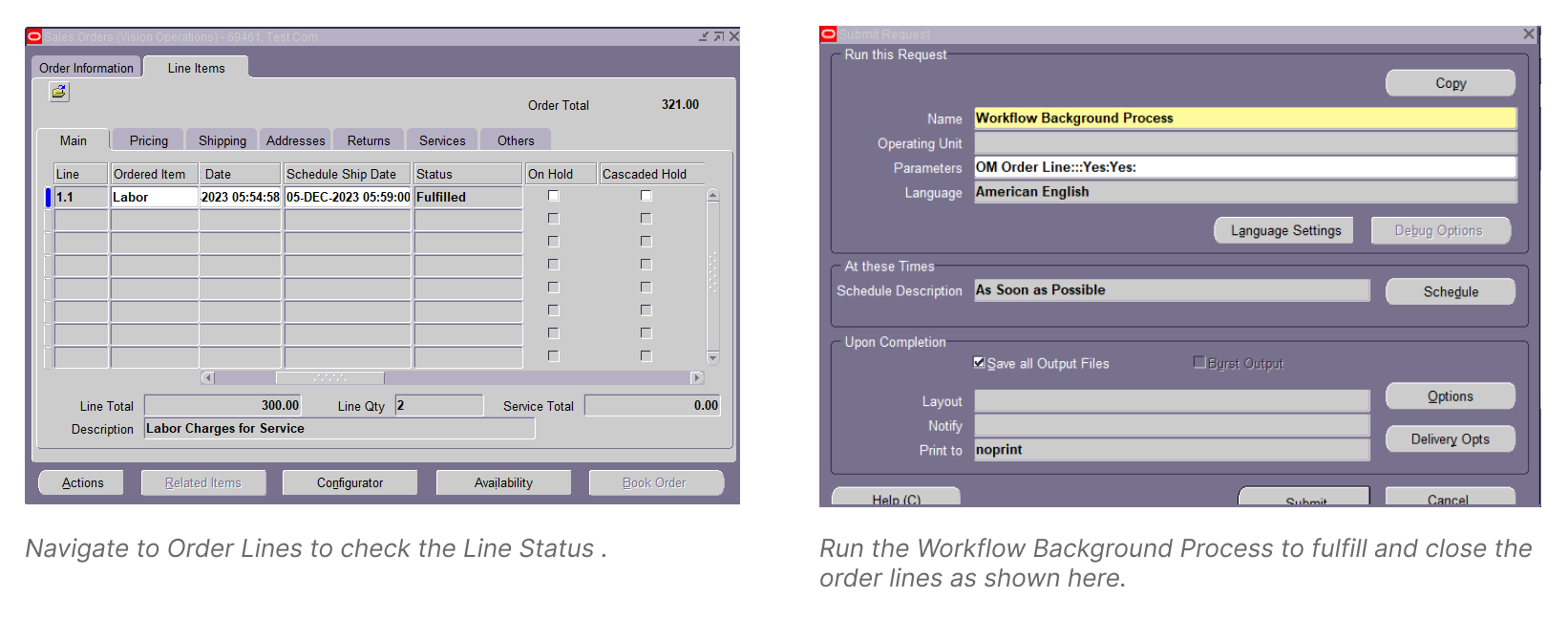

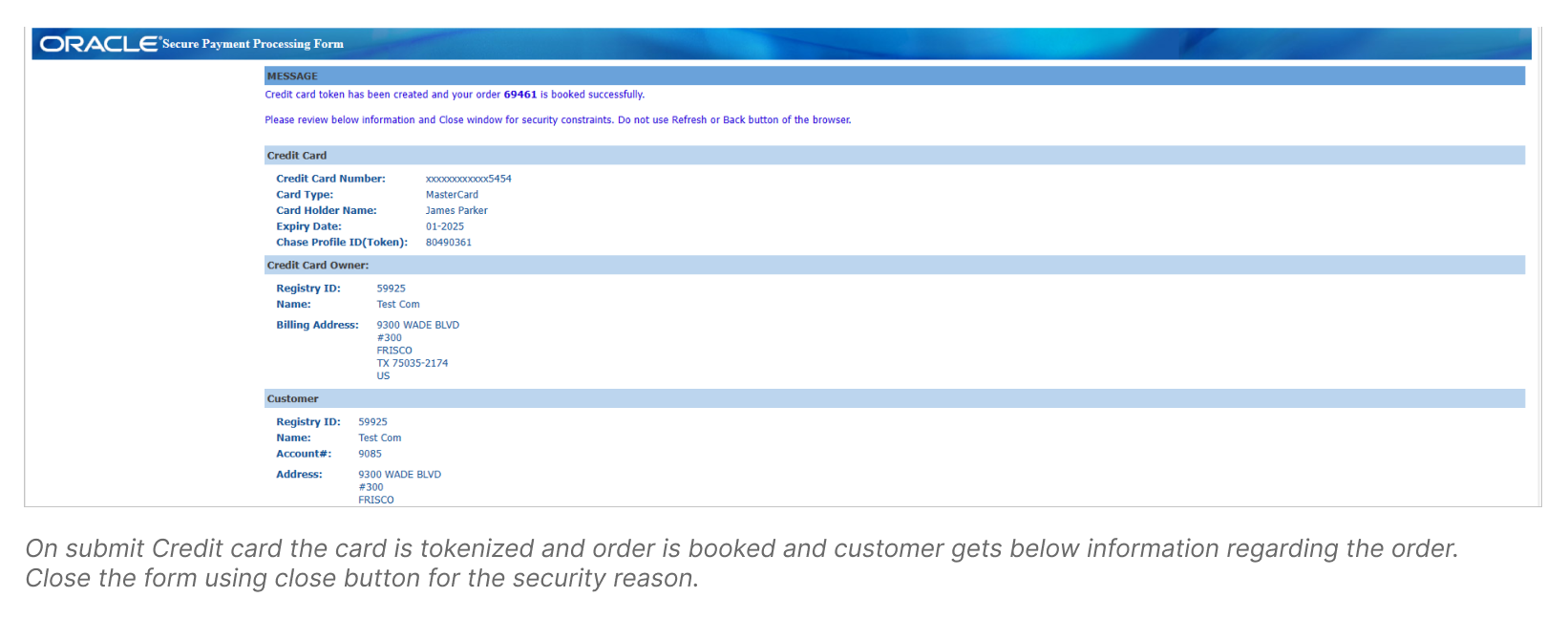

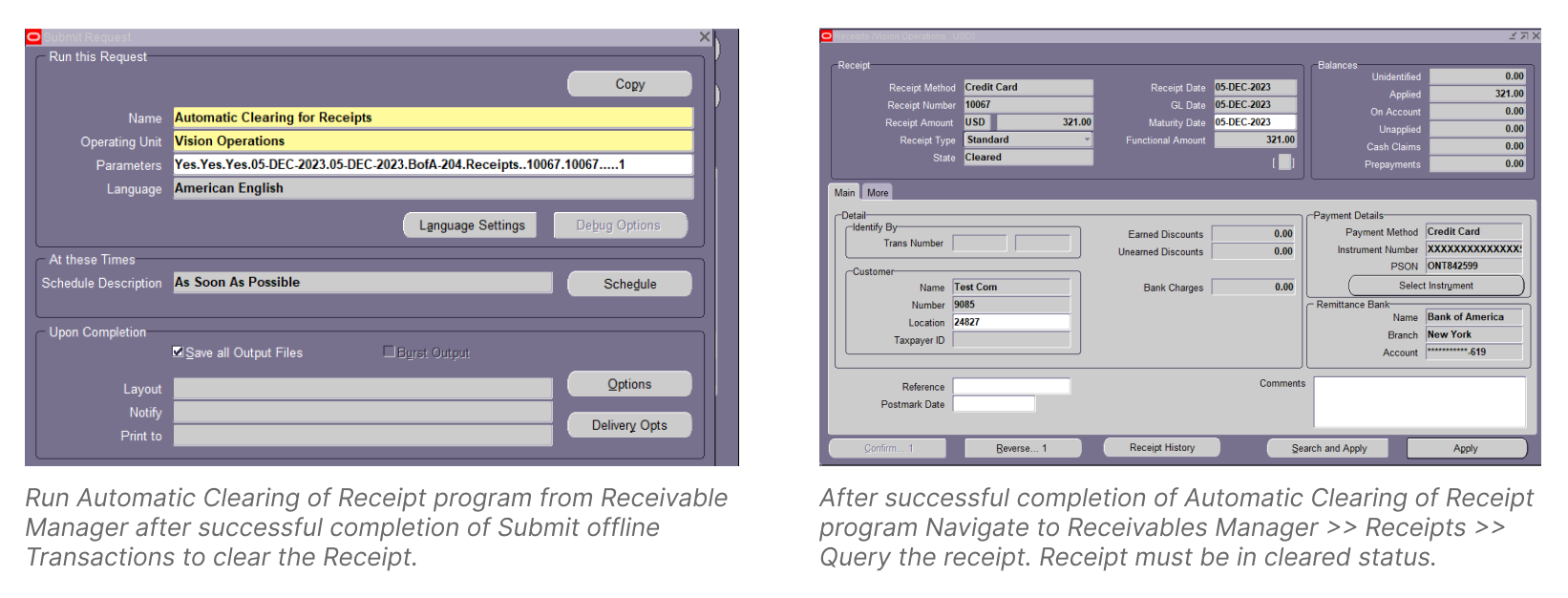

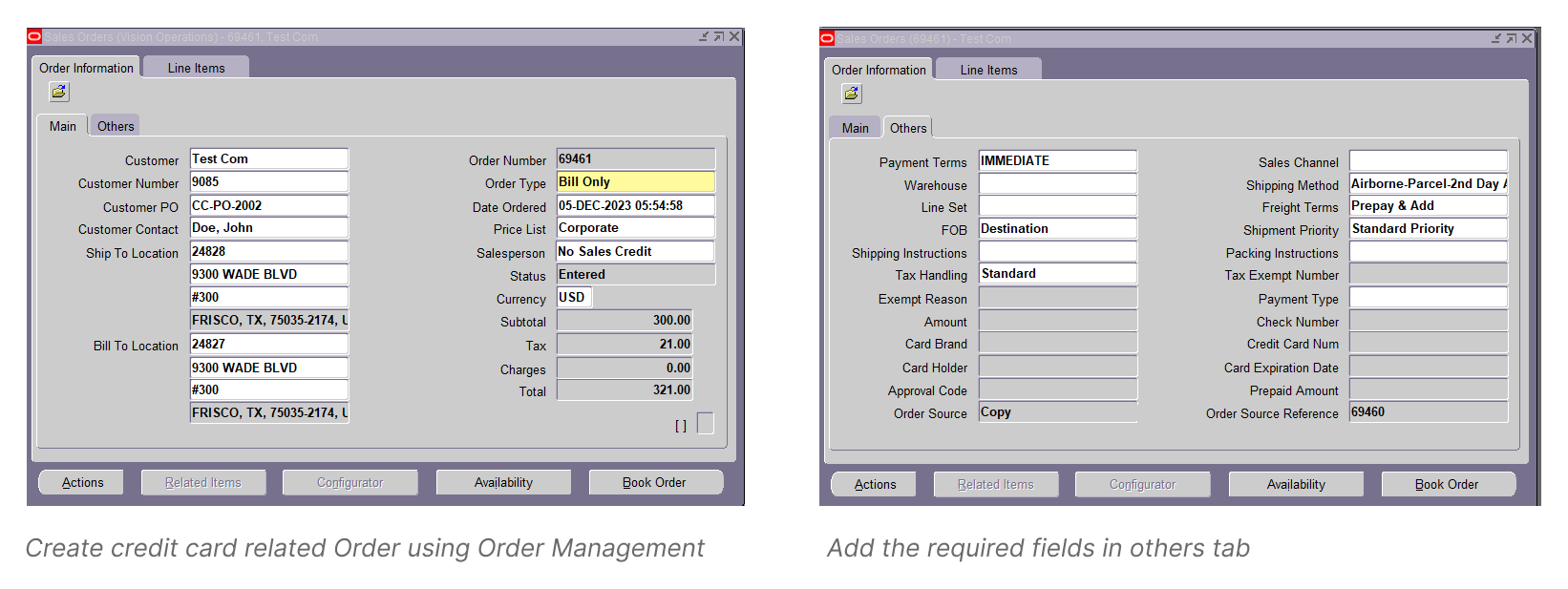

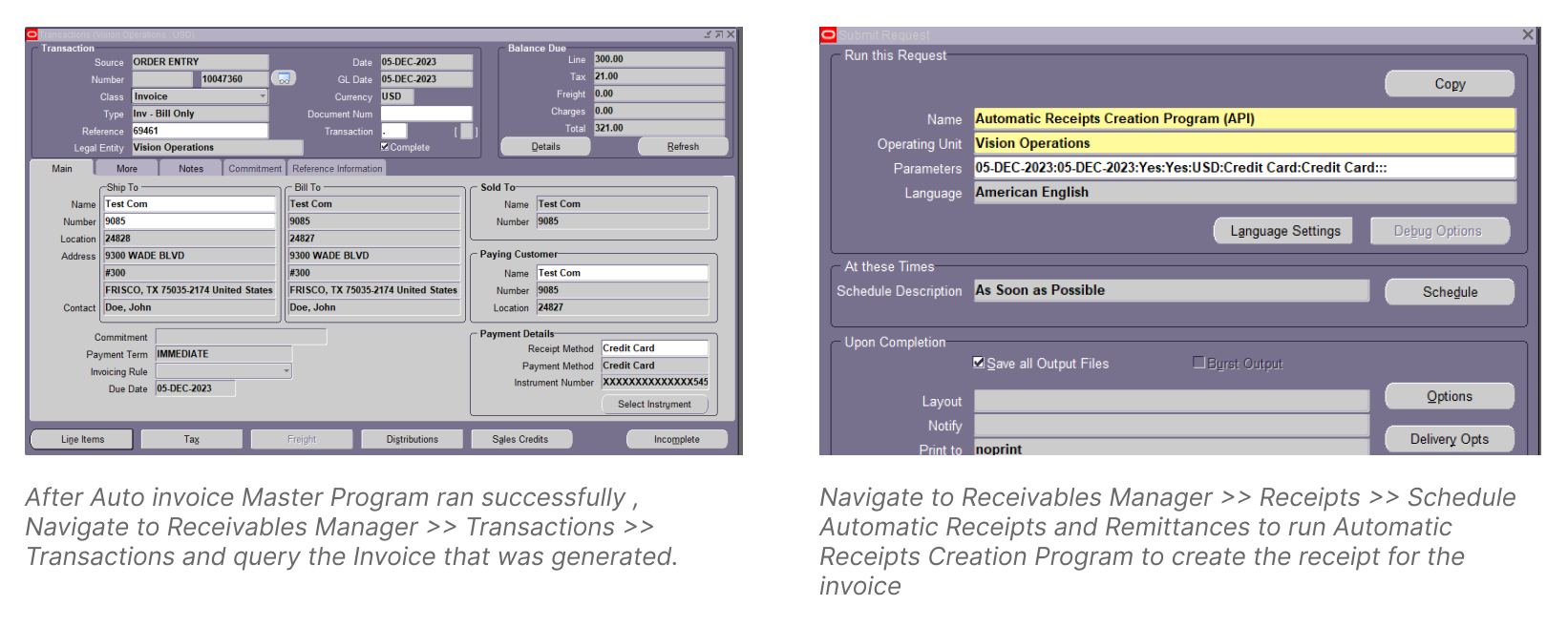

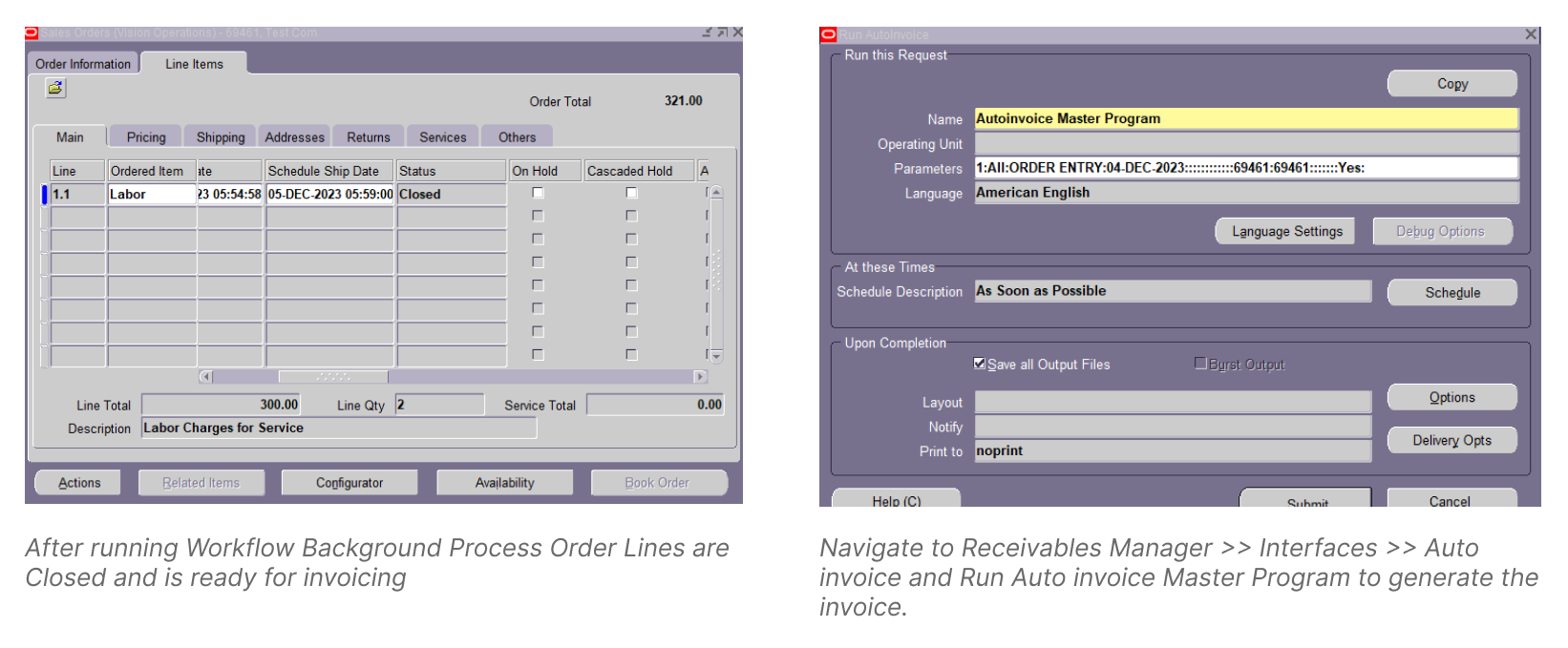

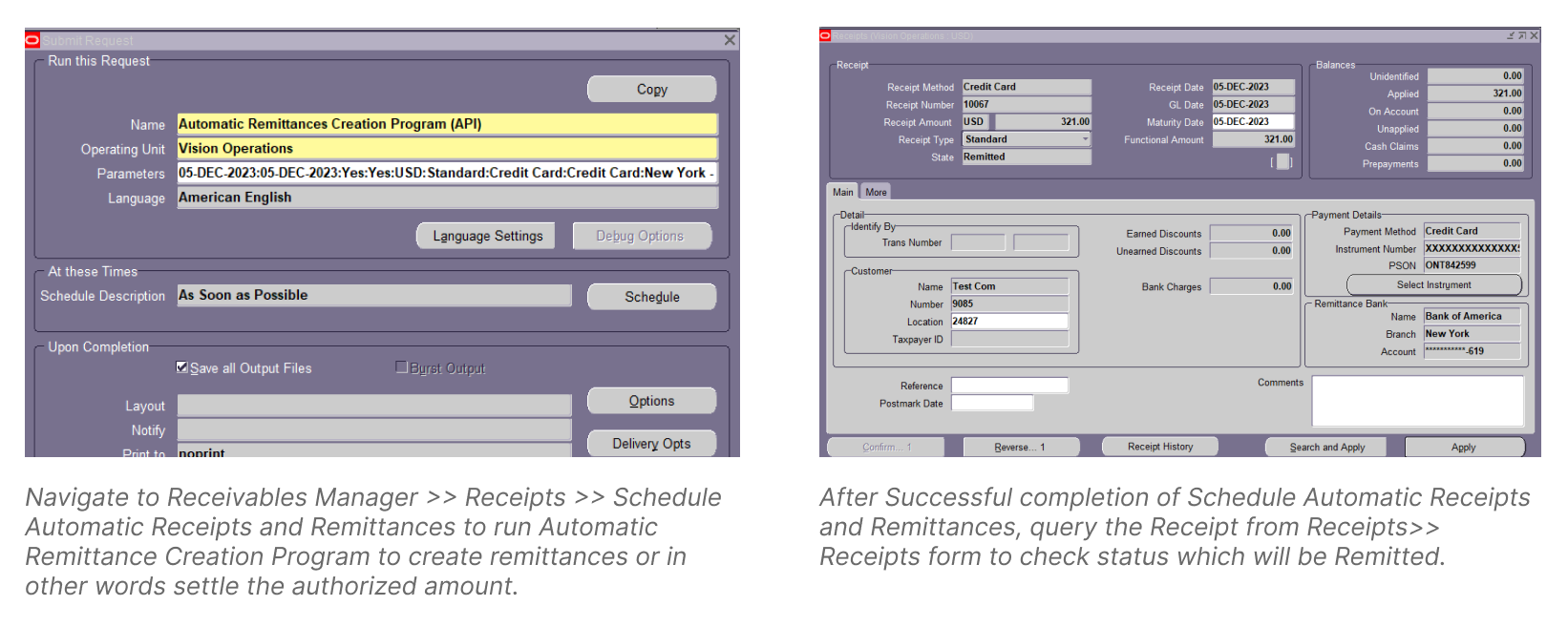

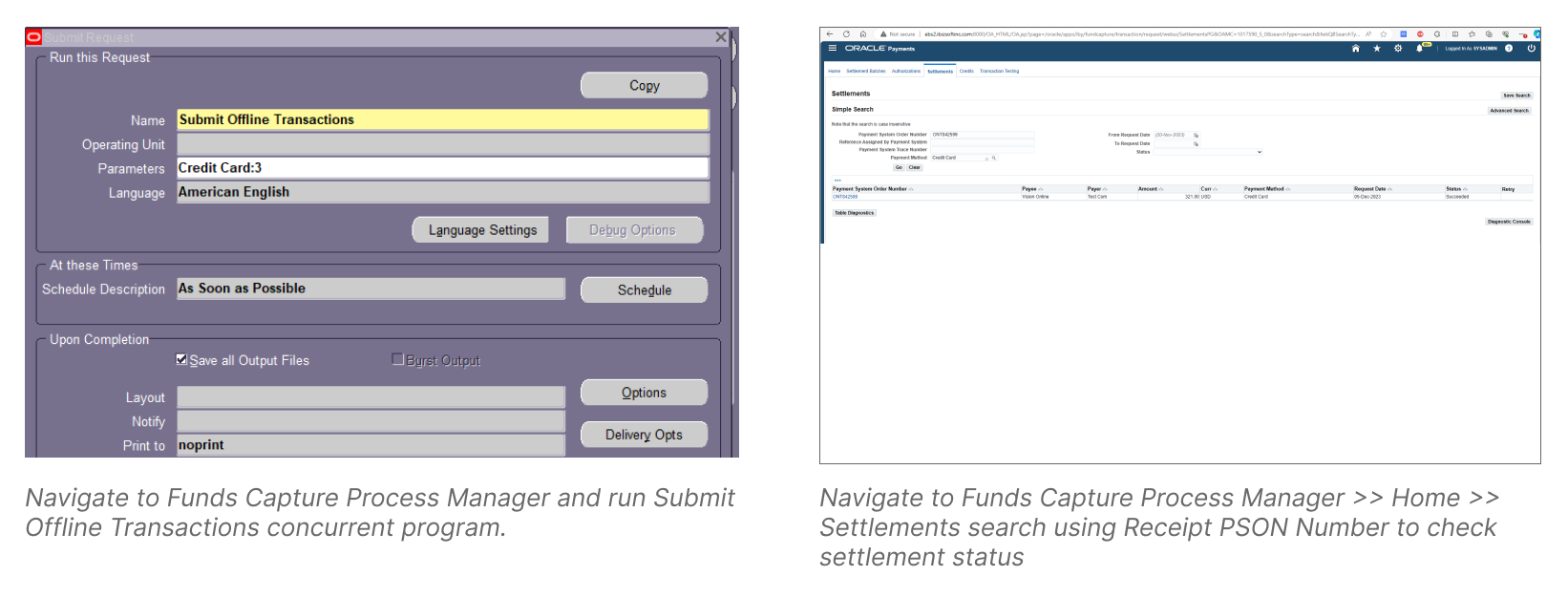

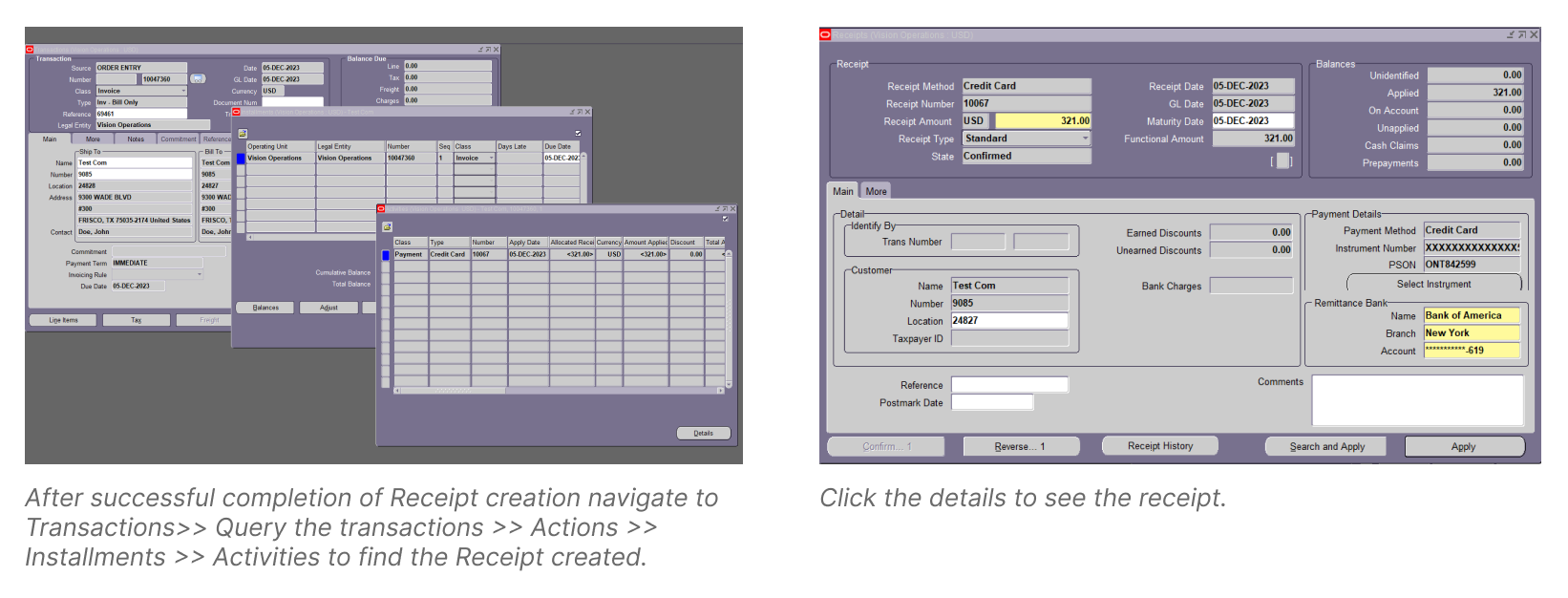

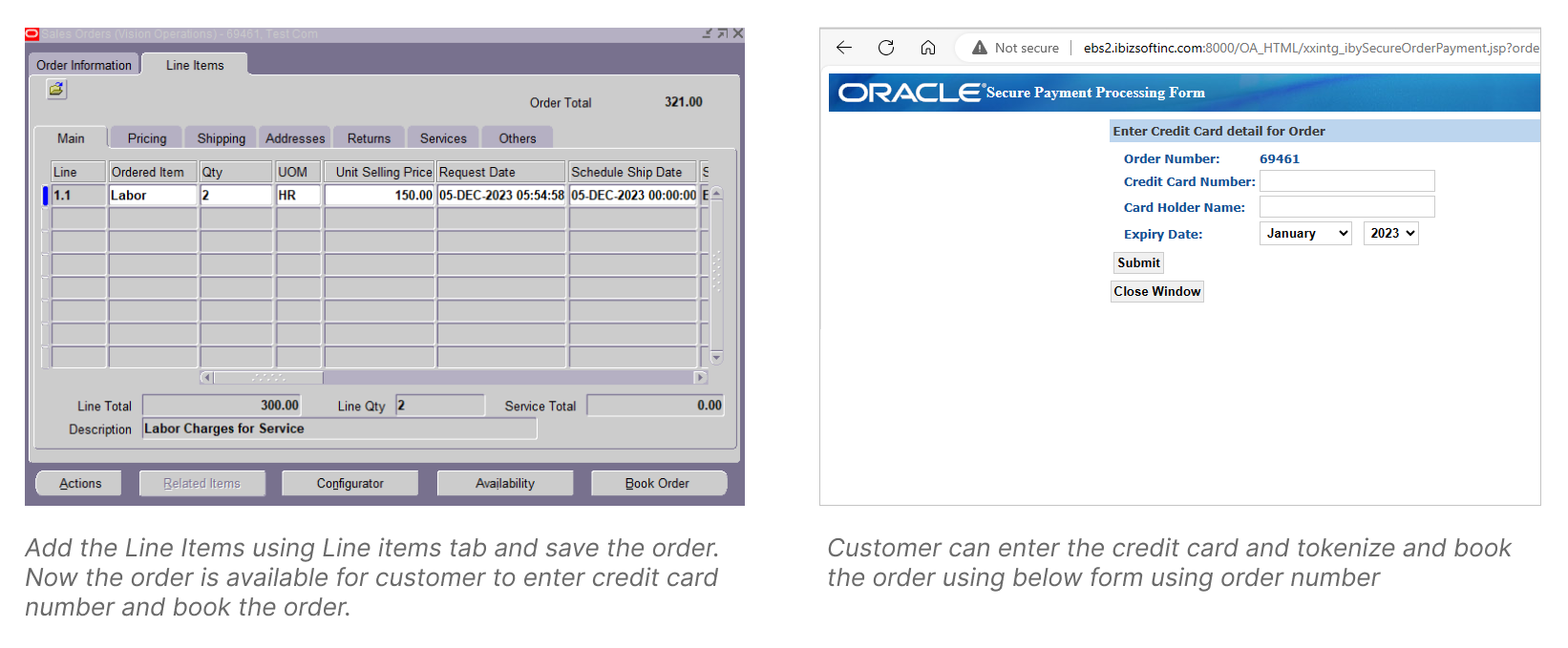

Following screen shots describe how this solution can be implemented on Oracle iPayment for 11i. This procedure will Authorise one transaction successfully and then would Capture the transaction.
